Skylight

Project the aircraft passing overhead onto your ceiling, in real time - an X-ray through the roof.

🛰️ Get notified when I launch on a crowdfunding platform → skylightceiling.com
_{A ready-made kit is coming. Join the waitlist for early access & launch pricing.}

https://github.com/user-attachments/assets/9256b0eb-cc27-4388-9a4f-0a6c05468304

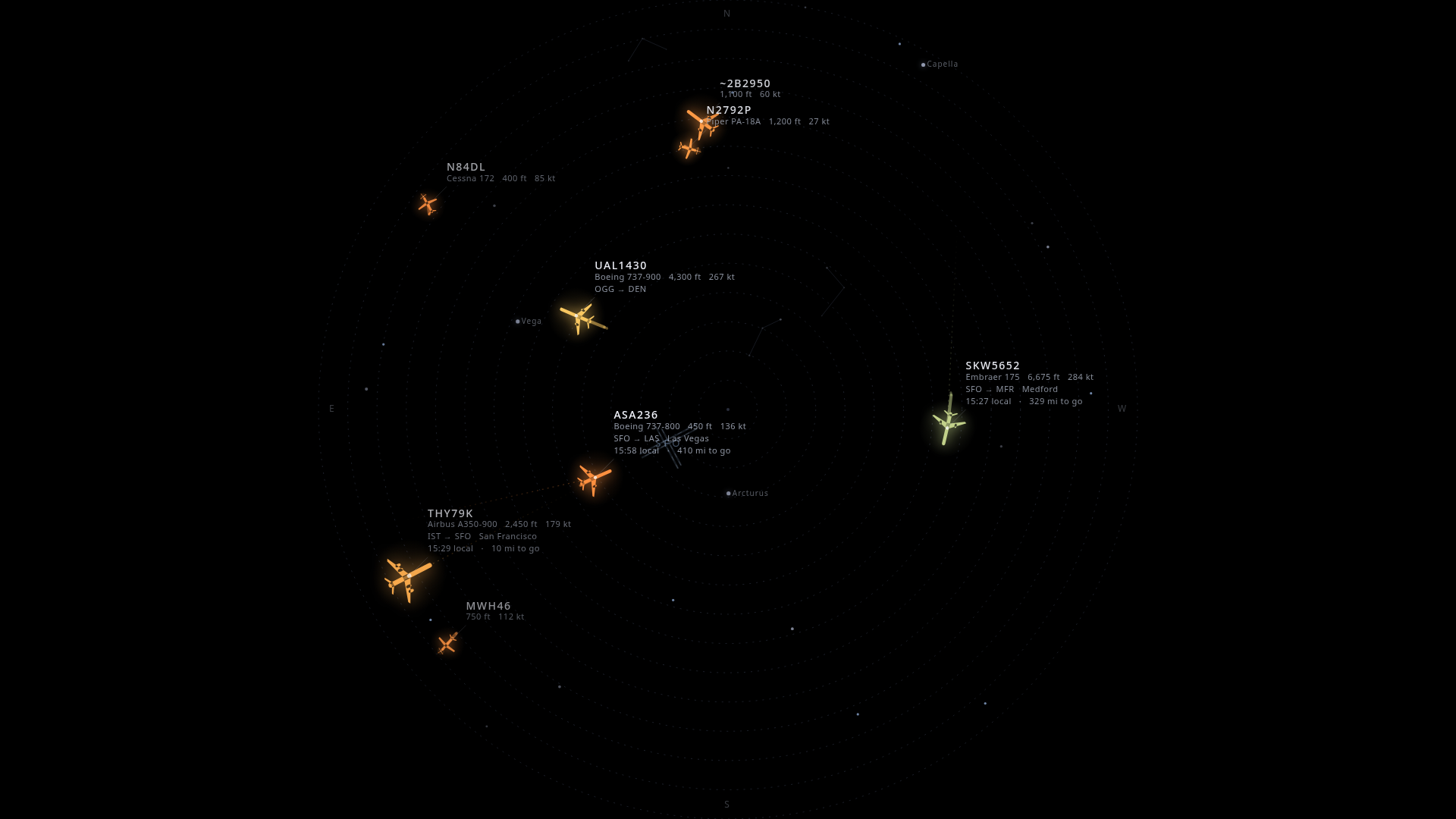

Skylight decodes ADS-B from a cheap RTL-SDR radio and renders the planes physically flying over you onto a ceiling-pointed projector. A jet you'd hear overhead glides across your ceiling at the same moment - labeled with its airline, type, and where it's headed. Pure-black background so the projector's rectangle disappears and only the aircraft (and stars) are lit.

It also draws the real sky behind the planes - sun, moon, bright stars and constellations, and live satellites including the ISS - all at their true positions for your location and time. Tune everything from your phone.

Reference build is centered on San Francisco International (SFO), but it works anywhere - set your location in the control panel and import your airport's runways by ICAO/IATA code (worldwide, via OurAirports) and you're flying.

Features

• Real-time overhead aircraft from a local RTL-SDR (sub-second), or from a free web API with zero code changes - handy for trying it with no radio.
• Type-aware glyphs in a luminous, swept-wing style: widebodies tower over regional jets, helicopters spin their rotors, turboprops and GA aircraft spin their props.
• Smooth motion - interpolates the ~1 Hz fixes to 60 fps by rendering slightly in the past and tweening between real positions (no teleporting).
• Comet trails, altitude-graded color, and range rings + compass for orientation.
• The airport (runways) drawn at its true position, so you watch departures and arrivals line up with the runway.
• Window to elsewhere - each routed flight shows its destination city, local time there, and miles-to-go, plus a faint great-circle arc toward where it's headed.
• Live sky layer - sun, moon (with phase), bright stars + constellation lines, naked-eye planets, and satellites / ISS computed from TLEs. Scrub time forward/back from your phone, or jump straight to the next ISS pass.
• Phone control panel - every setting (rotation, theme, palette, filters, sky toggles, …) is live-tunable over your LAN and persists across reboots.
• Optional sky camera - point a PTZ camera (VISCA-over-IP + RTSP) at the sky and Skylight automatically films the planes it's projecting: ADS-B-driven pointing with latency-compensated lead prediction, a hybrid vision system that locks the plane to center, and a confidence-gated zoom ladder that punches in as the lock holds. Includes a TV dashboard (/tv.html) with the live feed + radar inset, and a full debug UI (/tracker.html) with jog pad, target table, and a star-capture calibration wizard.
• Vision that knows a plane from a cloud - the camera tracker fuses three signals: a classical blob detector (distant specks) + a large-object detector (big overhead planes), track-before-detect that picks the target by how it moves through the world like ADS-B predicts (clouds are world-static and lose), and an optional neural airplane detector (YOLOX-Nano ONNX, downloaded at setup) for a semantic "is it an airplane?" confirmation. It also continuously self-calibrates the mount from every locked pass, so the aim re-squares itself over time.
• Appliance-ready - boots straight to a full-screen kiosk on a Raspberry Pi 5 (dual-output: projector + TV dashboard).

Hardware

💡 Budget tip - you don't need an expensive projector. The pricey laser short-throw is only worth it if you want the image visible in a lit room. If you're happy viewing it in a dim/dark room (the intended vibe), a cheap native-1080p LED projector like the Yaber Buffalo Pro U9 (~$150) works great:

• No short-throw needed - from the floor under an ~8 ft ceiling, even a 1.35:1 throw gives a ~5.5 ft image.
• Low brightness is fine (even better) - the content is sparse-on-black, so 200–400 lumens in a dark room actually looks deeper.
• Just verify it's native 1920×1080 (not "1080p supported"), has a quiet fan, and an HDMI input that shows on power-on.

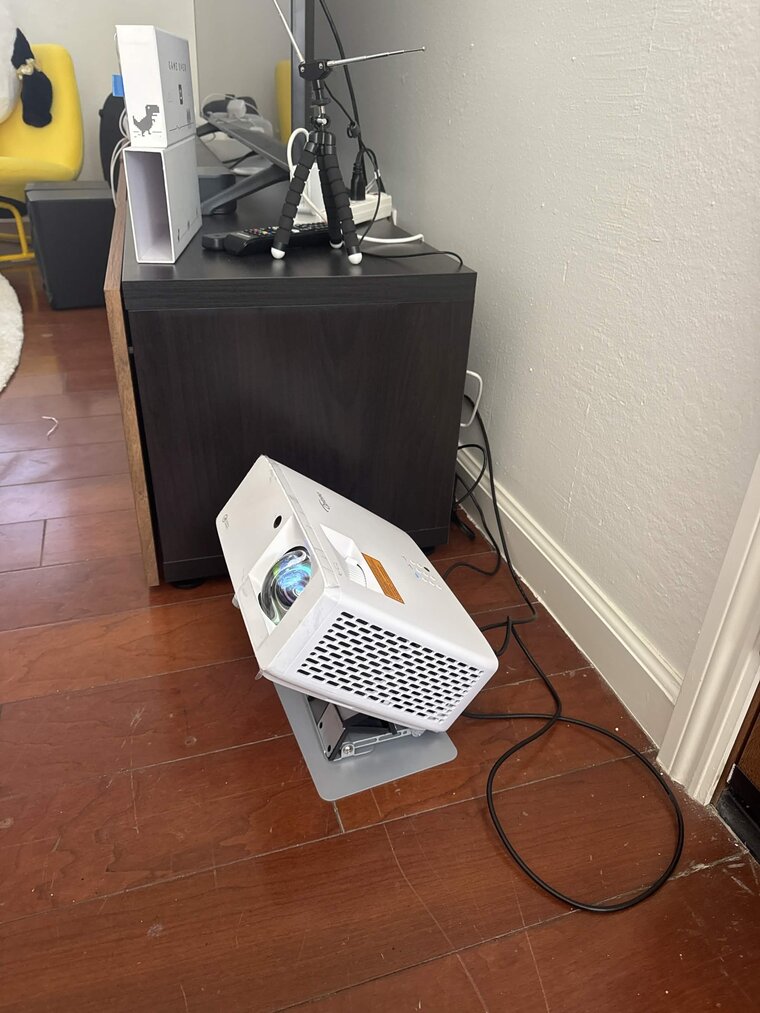

The build - short-throw projector pointing up, RTL-SDR dipole on the cabinet.

You don't need any of this to try it - see Quick start.

Minimum specs

There are two workloads, and they have very different requirements:

• Display + decode (the core ceiling piece). This is light. The server is a small Node process; the rendering is a 2D canvas. A Pi 4 (2 GB) runs it comfortably, and a Pi 3B / Pi Zero 2 W will work for the display if you keep the canvas modest - cap maxFps (e.g. 30), trim trailSeconds, and lean on DATA_SOURCE=api so the Pi isn't also running dump1090. 1 GB is workable but tight; 2 GB+ is the comfortable floor.
• The optional sky-camera tracker (vision + neural detector). This is the heavy part and is what the Pi 5 (8 GB) recommendation is for - real-time RTSP decode plus ONNX inference. Don't expect the vision tracker to keep up on a Pi 4 or smaller.

Rule of thumb: Pi Zero 2 W / 3B = display only, Pi 4 = display + local radio, Pi 5 = everything including the camera tracker.

Quick start (local, no radio)

Runs entirely on your computer against a free public ADS-B API.

pnpm install
DATA_SOURCE=api pnpm dev

• Display: http://localhost:5173/
• Control panel: http://localhost:5173/control.html (or from your phone: http://<your-ip>:5173/control.html)
• Camera tracker debug UI: http://localhost:5173/tracker.html - runs against a built-in camera simulator, so the whole pointing pipeline (target selection, prediction, zoom, calibration) works with zero hardware.
• TV dashboard: http://localhost:5173/tv.html

Then set your location from the control panel's Location section - search a city/airport, tap Current to use the browser's location, or type lat,lon directly. The default is SFO, so until you change it you'll see San Francisco traffic (or nothing, if your radius is small). Your airport's runways can be drawn too: type its ICAO/IATA code into Location → Runways and they're imported automatically.

With a radio (locally)

scripts/install-rtlsdr-fedora.sh    # rtl-sdr-blog driver + blacklist DVB-T (Fedora; see script for Debian)
scripts/run-dump1090-local.sh       # decode + serve aircraft.json on :8080
DATA_SOURCE=radio pnpm dev

Raspberry Pi appliance

Full walkthrough in pi-setup/README.md: flash + headless provision the SD card, install the driver + decoder + app, and set up the boot-to-kiosk display. Once it's running, push updates from your dev machine with:

PI_HOST=skylight.local ./scripts/deploy-to-pi.sh

Optional: the neural airplane detector

The camera tracker works out of the box with its classical + motion-tracking vision. For an extra semantic "is it an airplane?" signal (kills cloud locks, nails big overhead planes), download the optional ONNX model on the machine with the camera:

./scripts/fetch-vision-model.sh        # YOLOX-Nano, Apache-2.0, ~3.5 MB (not committed)
sudo systemctl restart skylight-tracker
# verify: the tracker state shows vision.net.ready == true

It's fully optional - if the model (or onnxruntime-node) is absent, the tracker runs classical-only with no errors. On a Pi 5 it adds ~0.8 to load average during a pass; turn it off with tracker.vision.net.enabled = false or run it less often with tracker.vision.net.everyNTicks if the Pi runs hot.

Docker (server-driven projector)

If you'd rather drive a projector from a server (no Pi, no cabling to the projector), run the server + display in a container:

docker compose up -d --build
# display:  http://<host>:3000/      ·  phone panel: http://<host>:3000/control

Out of the box it uses the free airplanes.live API, so it runs with no radio. To use your own ADS-B receiver, set DATA_SOURCE=radio and point AIRCRAFT_JSON_URL at an existing dump1090 / readsb / PiAware feed on your network (or just change the URL live from the control panel's Source section):

# compose.yaml
environment:
  DATA_SOURCE: radio
  AIRCRAFT_JSON_URL: http://192.168.1.50:8080/data/aircraft.json

Config and the route/TLE caches persist in the skylight-data volume. The image is the server + display only - the optional sky-camera tracker (which wants direct camera + GPU access) is not containerized. If you reach the server over a custom hostname or a tunnel rather than a LAN IP / *.local, add it to ALLOWED_HOSTS (see below).

Reaching a decoder in another container: the fetch happens from inside the Skylight container, so localhost won't work and a sibling container's name only resolves if both containers share a Docker network. Either use the decoder host's LAN IP (e.g. http://192.168.1.50:8080/data/aircraft.json), or attach Skylight to the decoder's network (see the commented networks: block in compose.yaml). The status line in /control shows why a fetch fails (DNS, refused, timeout).

Troubleshooting

No planes, using the public API. The view is centered on SFO until you set your location - open /control and use the Location section (search, Current, or lat,lon). Then check the status line at the top of /control: it shows the live source, count, and the exact failure reason if polling is failing. If you're far from an airport, also widen the Radius slider.

source fetch failed: … in the status line. The reason in parentheses tells you what's wrong, measured from the server:

• DNS lookup failed (host) - the server can't resolve that hostname. In Docker this usually means the decoder container isn't on the same Docker network (see the Docker section above).
• connection refused / host unreachable / timeout - the host resolved but nothing answered on that port; check the URL's port and that the decoder's web server is up (curl http://<host>:8080/data/aircraft.json from the machine running Skylight).
• HTTP 429 - the public API is rate-limiting; Skylight now backs off automatically and recovers on its own. Planes hold position on screen through brief outages.

Pointing at an existing dump1090 / readsb / PiAware feed. Set the Radio URL in /control → Source to your feed's aircraft.json (dump1090-fa serves it at http://<host>:8080/data/aircraft.json) and switch the source to radio. No rebuild needed - it applies on the next poll.

Installer fails with Unsupported architecture: armhf. You're on 32-bit Raspberry Pi OS; Node.js no longer ships 32-bit ARM builds. Re-flash with Raspberry Pi OS (64-bit) - every supported Pi (3/4/5, Zero 2 W) can run it.

Runways for my airport. /control → Location → Runways: enter the ICAO or IATA code (e.g. EGLL, EDDF, SNA). Geometry comes from the public-domain OurAirports dataset; very small airfields sometimes lack surveyed runway endpoints, in which case you'll get a clear error.

Clock on the TV dashboard is wrong. It shows the Pi's system time - fix the timezone with sudo timedatectl set-timezone <Region/City>.

Configuration

Config (shared/src/config.ts) is the single source of truth, persisted to server/data/config.json and live-editable from the control panel. Key fields:

Using it somewhere other than SFO: set your location from the control panel's Location section (or edit centerLat/centerLon). Stars, sun, moon, and satellites are computed for your coordinates automatically. The runway overlay is still SFO-specific geometry - turn off Airport runways if you've moved, or replace it in [web/src/display/airports.ts](web/src/display/airports
